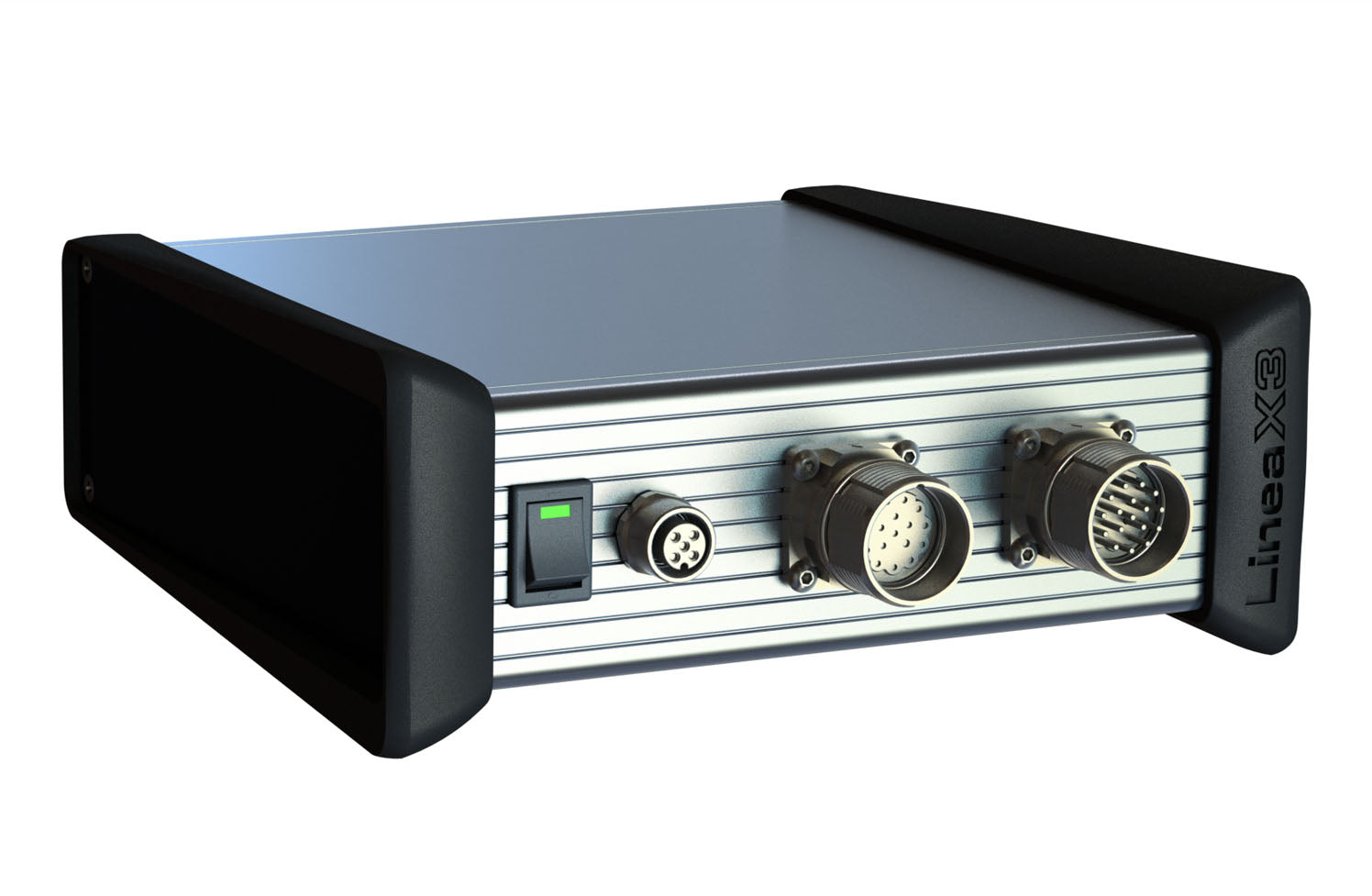

Linea X3 Encoder Tester
The Linea X3 Encoder Tester finds issues other systems miss—56% faster repair process with 3.5X more tests performed. Rotate the motor 10X per channel for thorough analysis. Auto-generated reports with your company logo reveal whether an encoder, resolver, hall effect, or tach is within spec or needs repair/replacement.
Use the Linea X3 Encoder Tester with AutoCUE Software for:
- Feedback
- Memory
- Alignment
- Reporting
Interested in Making the Switch? You have our commitment to excellent products and support.
Your Linea X3 and RunWELL purchase includes:
- 100% Access to Everything—including future test capabilities, software updates, and new features at no cost
- 12-hour Complimentary Training
- Nonstop Technical Support
No-Risk Guarantee: If the test equipment isn't a good fit, you have 90 days to return it for a full refund.
» View signal symmetry and strength in real time. Detect discrepancies in feedback performance with meaningful graphical representation of all encoder signals.
» Set the alignment point and know if the encoder needs to be repaired or replaced with automated pass/fail status messages.
» Never expiring Test Minutes with Usage Control™ puts you in charge for less waste.
» Freely edit important encoder specifications and motor-specific parameters. Activate write-protection to prevent unintentional changes to saved values.
| Encoder Types Supported |
Encoder Interfaces Supported |
Test Analytics Performed |
|---|---|---|
| Incremental | Analog | Amplitude |
| Absolute | 1 Vpp | Phase Difference |
| Resolver | Sinusoidal | Duty Cycle |
| Hall Effect | Digital | Encoder Power |
| TachGenerator | TTL | Revolution |
| HTL | Count | |
| Serial | Speed | |
| I2I | Position | |
| SSI | Strength | |
| BiSS | Battery Power | |
| EnDat | Frequency | |
| Hiperface | Noise | |
| Controller | Device | Resolution | Requirements | |
|---|---|---|---|---|
|
Processor Intel ATOM |
Supply Voltage 15Vdc |
PPR 10,000 |
OS Windows 10 or Windows 11 |
Other • Test Minutes • Latest Firmware |
|
FPGA Xilinx Artix |
Dimensions 7 in X 7.5 in X 3 in Weight: 2.75 lbs |
Bits 64 Bit Serial |
Memory 32GB |
|
|
OS RTLinux |
Protection Rating IP50 |
Vpp 12 Vpp |
CPU Intel Core i7 or Equivalent |
|
|
Connection Ethernet USB-C 2.0 |
Material Extruded Aluminum |
Channels 12 |
HDD 8GB Free Space |
